Tuning vibrations of a tuning fork
Tuning forks should resonate at a desired frequency when subjected to an impulsive load. Achieving the right frequency cab be done by adding material or filing material off the prongs. We start from a target solution establihed using SweepX. A sprious mass is then introduced, parametrized by an A-dof. We use the SweepXA and DirectXUA solvers to estimate how much mass should be removed. In SweepXA, the excitation is assume to be known, while it is estimated by DirectXUA.
NB: In several places in this script, solve is called with optional verbose=false, because this script is part of the generation of Muscade's online documentation. Setting verbose=true would be more relevant in other contexts.
using Muscade, StaticArrays, GLMakie, Muscade.ToolboxDimensions of the tuning fork and number of elements
l₀=2.5e-2; n₀=1 # base - length and number of elements
l₁=1e-2; n₁=1 # fork - length and number of elements per side
l₂=9.5e-2; n₂=5 # prong - length and number of elements per side
b = 5e-3; # thickness of the cross-section
E = 210e9; # Young modulus
G = 79.3e9; # shear modulus
μ = 7850. *b^2; # mass per unit length, assumes steel
beamCrossSection = BeamCrossSection(EA=E*b^2, EI₂=1/12*E*b^4, EI₃=1/12*E*b^4, GJ=1/3*G*b^4, μ=μ, ι₁=1/6*μ*b^2,Cl₂=10.,Cl₃=10.);Define an A-parametrized point mass element (inducing an inertia force)
struct LumpedMass <: AbstractElement; m :: 𝕣; end
LumpedMass(nod::Vector{Node};m::𝕣) = LumpedMass(m)
@espy function Muscade.residual(o::LumpedMass, X,U,A, t,SP,dbg); return (o.m+A[1]).*∂2(X),noFB; end
Muscade.doflist( ::Type{LumpedMass}) = (inod =(1,1,1,2), class=(:X,:X,:X,:A), field=(:t1,:t2,:t3,:mass));Time step and simulation length settings
Δt = 3e-4;
nDynamicLoadSteps = 200;
timeVec = Δt:Δt:nDynamicLoadSteps*Δt;Coordinates of the nodes.
XnodeCoord = vcat(
hcat((0:n₀) * l₀/n₀ , zeros(n₀+1,1) , zeros(n₀+1,1) ), # base nodes
hcat(ones(n₁,1)*l₀ , (1:n₁)*l₁/n₁ , zeros(n₁,1) ), # upper fork
hcat(ones(n₁,1)*l₀ , -(1:n₁)*l₁/n₁ , zeros(n₁,1) ), # lower fork
hcat(l₀ .+ (1:n₂)*l₂/n₂ , ones(n₂,1)*l₁ , zeros(n₂,1) ), # upper prong
hcat(l₀ .+ (1:n₂)*l₂/n₂ , -ones(n₂,1)*l₁, zeros(n₂,1) ) # lower prong
)14×3 Matrix{Float64}:
0.0 0.0 0.0
0.025 0.0 0.0
0.025 0.01 0.0
0.025 -0.01 0.0
0.044 0.01 0.0
0.063 0.01 0.0
0.082 0.01 0.0
0.101 0.01 0.0
0.12 0.01 0.0
0.044 -0.01 0.0
0.063 -0.01 0.0
0.082 -0.01 0.0
0.101 -0.01 0.0
0.12 -0.01 0.0External excitation load at the end of the upper prong
@functor with() pling(t) = Muscade.FunctionFromVector([-10, 0, 10e-3, 12e-3, 10],[0,0,10,0,0])(t)
plingNode = n₀+2n₁+n₂+1; # where do we hit the tuning forkBuilding the model
model = Model(:TuningFork);Add the nodes describing the beam model, the node that will contain the parameter to optimize
Xnod = addnode!(model,XnodeCoord)
Anod = addnode!(model,𝕣[])Muscade.NodID(15)List of nodes that will be used to create the beam elements
nel = n₀+2n₁+2n₂
mesh = vcat(
hcat(Xnod[1:n₀],Xnod[2:n₀+1]), # base
hcat(Xnod[n₀+1:n₀+n₁],Xnod[n₀+2:n₀+n₁+1]), # upper fork
[Xnod[n₀+1] Xnod[n₀+n₁+2]], hcat(Xnod[n₀+n₁+2:n₀+2n₁],Xnod[n₀+n₁+3:n₀+2n₁+1]) , # lower fork
[Xnod[n₀+n₁+1] Xnod[n₀+2n₁+2]], hcat(Xnod[n₀+2n₁+2:n₀+2n₁+n₂],Xnod[n₀+2n₁+3:n₀+2n₁+n₂+1]) , # upper prong
[Xnod[n₀+2n₁+1] Xnod[n₀+2n₁+n₂+2]], hcat(Xnod[n₀+2n₁+n₂+2:n₀+2n₁+2n₂],Xnod[n₀+2n₁+n₂+3:n₀+2n₁+2n₂+1]) # lower prong
)13×2 Matrix{Muscade.NodID}:
NodID(1) NodID(2)
NodID(2) NodID(3)
NodID(2) NodID(4)
NodID(3) NodID(5)
NodID(5) NodID(6)
NodID(6) NodID(7)
NodID(7) NodID(8)
NodID(8) NodID(9)
NodID(4) NodID(10)
NodID(10) NodID(11)
NodID(11) NodID(12)
NodID(12) NodID(13)
NodID(13) NodID(14)In the XUA analysis we estimate the distributed load on the element close to the node where the load was applied
plingElement = n₀+2n₁+n₂;Add beam elements to the model, enabling Udof only for the element that is hit.
addelement!(model,EulerBeam3D{false}, mesh; mat=beamCrossSection,orient2=SVector(0.,0,1))
[addelement!(model,Hold,[Xnod[1]] ;field) for field∈[:t1,:t2,:t3,:r1,:r2,:r3]];Create variations of the model
XAmodel = deepcopy(model)
XUAmodel = deepcopy(model);Add parasitic lump mass on both XA and XUA models
spuriousMass = 4e-3;
spuriousMassLocation = plingNode-1
addelement!(XAmodel, LumpedMass, [Xnod[spuriousMassLocation] Anod]; m=spuriousMass)
addelement!(XUAmodel, LumpedMass, [Xnod[spuriousMassLocation] Anod]; m=spuriousMass);Add known external force to X and XA models, and an unknown force to XUA model
addelement!(model, DofLoad,[Xnod[plingNode]];field=:t2,value=pling)
addelement!(XAmodel, DofLoad,[Xnod[plingNode]];field=:t2,value=pling);
@functor with(σᵤₚ=0.1) UcostPling(u,t) = 0.5*(u/σᵤₚ)^2 * clutch(t,0.02,0.04,1.,100.,1)
addelement!(XUAmodel, SingleUdof,[Xnod[plingNode]];Xfield=:t2,Ufield=:t2,cost=UcostPling)Muscade.EleID(9, 1)Establish target response
initialState = initialize!(model;time=0.);
dynamicStates = solve(SweepX{2};initialstate=initialState, time=timeVec, verbose=false)
vibTarget = getdof(dynamicStates;field=:t2,nodID=[Xnod[plingNode]])
target = Muscade.FunctionFromVector(timeVec,vibTarget);Add costs on the deviation to target measurements, in the XA and XUA models
@functor with(σᵥ=1e-6,target) Xcost(x,t)=((x-target(t))/σᵥ)^2
addelement!(XUAmodel,SingleDofCost,[Xnod[plingNode]]; class=:X, field=:t2, cost=Xcost);
addelement!(XAmodel, SingleDofCost,[Xnod[plingNode]]; class=:X, field=:t2, cost=Xcost)Muscade.EleID(10, 1)Add costs on the correcting mass, in the XA and XUA models
@functor with(σₘ=5e-3,timeVec) Acost_(a) = 0.5*(a/σₘ)^2/length(timeVec)
addelement!(XUAmodel, SingleAcost,[Anod]; field=:mass, cost=Acost_)
addelement!(XAmodel, SingleAcost,[Anod]; field=:mass, cost=Acost_);Run analyses
XA model (before estimating the mass)
XAinitialState = initialize!(XAmodel;time=0.);
XAdynamicStates = solve(SweepX{2};initialstate=XAinitialState, time=timeVec,verbose=false);XA model (after having estimated the mass)
optimXAstate = solve(SweepXA{2}; initialstate=XAinitialState, time=timeVec,
maxAiter=20,maxΔa=1e-10,verbose=false);DirectXUA (slack convergence criteria and number of iterations)
XUAinitialState = initialize!(XUAmodel;time=0.);
optimXUAstate = solve(DirectXUA{2,0,1};initialstate=[XUAinitialState], time=[timeVec],
maxiter=15, maxΔx=5e-2,maxΔλ=Inf,maxΔu=5e-2,maxΔa=1e-4,verbose=false);Gather results for comparison
analysisResults = (dynamicStates, XAdynamicStates,optimXAstate,optimXUAstate[end]);
t1 = Matrix{Float64}(undef,length(analysisResults),length(timeVec))
t2 = Matrix{Float64}(undef,length(analysisResults),length(timeVec))
t3 = Matrix{Float64}(undef,length(analysisResults),length(timeVec))
transmittedForce = Matrix{Float64}(undef,length(analysisResults),length(timeVec))
req = @request gp(resultants(fᵢ))
for idx ∈ 1:length(analysisResults)
t1[idx,:] = getdof(analysisResults[idx];field=:t1,nodID=[Xnod[plingNode]])[:]
t2[idx,:] = getdof(analysisResults[idx];field=:t2,nodID=[Xnod[plingNode]])[:]
t3[idx,:] = getdof(analysisResults[idx];field=:t3,nodID=[Xnod[plingNode]])[:]
end
excEstt2 = getdof(optimXUAstate[end];class=:U,field=:t2,nodID=[Xnod[plingNode]])[:];Text output
println("Mass to remove in grams:")
print("- Estimated from DirectXUA analysis (unknown loading) : ")
println(-getdof(optimXUAstate[end];class=:A,field=:mass,nodID=[Anod])[1]*1e3)
print("- Estimated by SweepXA analysis (known loading) : ")
println(-getdof(optimXAstate[end];class=:A,field=:mass,nodID=[Anod])[1]*1e3)
print("- Expected : ")
println(spuriousMass*1e3)Mass to remove in grams:
- Estimated from DirectXUA analysis (unknown loading) : 2.797021611844938
- Estimated by SweepXA analysis (known loading) : 3.999999035971964

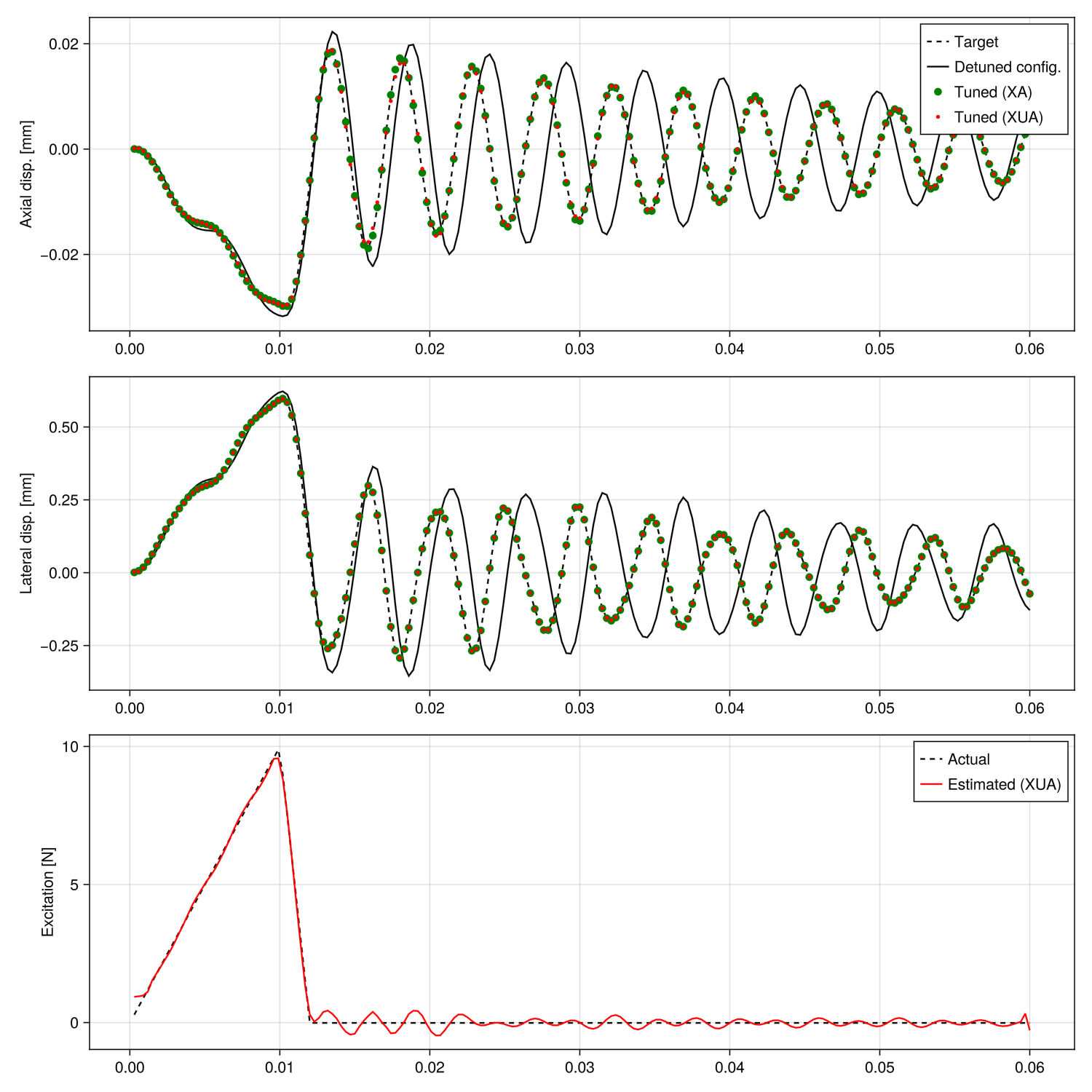

- Expected : 4.0Plot the axial and lateral displacement of the control node, and the estimated force.
fig = Figure(size = (1000,1000))
ax1 = Axis(fig[1,1],ylabel="Axial disp. [mm]")
lines!(ax1,timeVec,t1[1,:]*1e3, label="Target", color=:black, linestyle=:dash)
lines!(ax1,timeVec,t1[2,:]*1e3, label="Detuned config.",color=:black, linestyle=:solid)
scatter!(ax1,timeVec,t1[3,:]*1e3, label="Tuned (XA)", color=:green, markersize = 10)
scatter!(ax1,timeVec,t1[4,:]*1e3, label="Tuned (XUA)", color=:red, markersize = 5)
axislegend(ax1)
ax2 = Axis(fig[2,1],ylabel="Lateral disp. [mm]")
lines!(ax2,timeVec,t2[1,:]*1e3, label="Target", color=:black, linestyle=:dash)
lines!(ax2,timeVec,t2[2,:]*1e3, label="Detuned config.",color=:black, linestyle=:solid)
scatter!(ax2,timeVec,t2[3,:]*1e3, label="Tuned (XA)", color=:green, markersize = 10)
scatter!(ax2,timeVec,t2[4,:]*1e3, label="Tuned (XUA)", color=:red, markersize = 5)
ax3 = Axis(fig[3,1],ylabel="Excitation [N]")
lines!(ax3,timeVec,pling.(timeVec), label="Actual",color=:black, linestyle=:dash)
lines!(ax3,timeVec,excEstt2, label="Estimated (XUA)",color=:red, linestyle=:solid)
axislegend(ax3)
currentDir = @__DIR__
if occursin("build", currentDir)
save(normpath(joinpath(currentDir,"..","src","assets","TuningFork.png")),fig)
elseif occursin("examples", currentDir)
save(normpath(joinpath(currentDir,"TuningFork.png")),fig)
end
